Thread seal are used to maintain IP rating between cable gland and enclosure. It is necessary to fit on entry thread of cable gland. For Explosion proof equipment, it is necessary to maintain the integrity of Ingress protection at which equipment has been rated.
Material :
Nylon
Size :
M16 to M100 & ½” to 3 ½” NPT
Standard :
EN60529
Features :
1. Used for high vibration resistance due to positive equipment contact.
2. Excellent pretensioning.
3. Through proper radius selection, no splitting/cracking
occurs during tightening.
4. Extensive application, flexibility and minimizes stocks.
5. Minimum Thickness of washer is 2mm

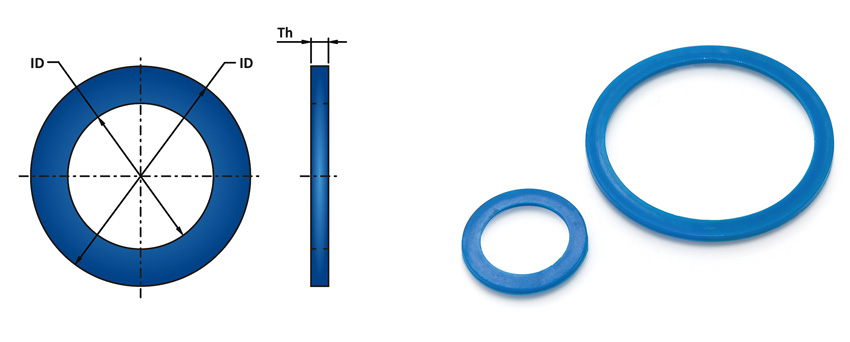

| Code | Size | OD | ID | TH |
| CETS-16 | M16 | 25 | 16.5 | 2 |
| CETS-20 | M20 | 30 | 20.2 | 2 |
| CETS-25 | M25 | 34 | 25.3 | 2 |
| CETS-32 | M32 | 4 | 32.5 | 2 |
| CETS-40 | M40 | 50 | 40.3 | 2 |
| CETS-50 | M50 | 63 | 50.5 | 2 |
| CETS-63 | M63 | 76 | 63.5 | 2 |
| CETS-75 | M75 | 95 | 75.5 | 2 |
| CETS-90 | M90 | 110 | 90.5 | 2 |
| CETS-100 | M100 | 125 | 100.5 | 2 |
| CETS-012 | ½" NPT | 30 | 21.5 | 2 |
| CETS-034 | ¾" NPT | 34 | 27 | 2 |
| CETS-010 | 1" NPT | 44 | 33.7 | 2 |
| CETS-114 | 1¼" NPT | 50 | 42.5 | 2 |
| CETS-112 | 1½" NPT | 63 | 48.5 | 2 |
| CETS-200 | 2" NPT | 76 | 60.6 | 2 |
| CETS-212 | 2½" NPT | 95 | 73.5 | 2 |
| CETS-300 | 3" NPT | 110 | 89.3 | 2 |
| CETS-312 | 3½" NPT | 125 | 102 | 2 |
