Size :
16mm to 90mm & ½" to 3½”
Standard :
BS 6121: Part-1:2005, EN 50262:1999
Application :
For indoor & outdoor use with all types of SWA cable providing environmental seal on both the cable inner & outer sheaths. Also provides mechanical retention & electrical
continuity via armour wire termination.
Ingress Protection :
IP66
Material :
Brass CW614N, Nickel Plated Brass, Stainless Steel 316L
Thread :
Metric, NPT
Operating Temp. :
-20°C to +80°C
Cable Type :
Single Wire Armour (SWA) Cable
Features :
Compression Seal and Armored Ring
Seal Material :
Neoprene Seal and Nylon Washer
Accessories :
PVC Shroud, Earth Tag, Serrated Washer, Entry Thread Seal, Adaptor and Reducer
Brass CW614N, Nickel Plated Brass, Stainless Steel 316L
Thread :
Metric, NPT
Operating Temp. :
-20°C to +80°C
Cable Type :
Single Wire Armour (SWA) Cable
Features :
Compression Seal and Armored Ring
Seal Material :
Neoprene Seal and Nylon Washer
Accessories :
PVC Shroud, Earth Tag, Serrated Washer, Entry Thread Seal, Adaptor and Reducer

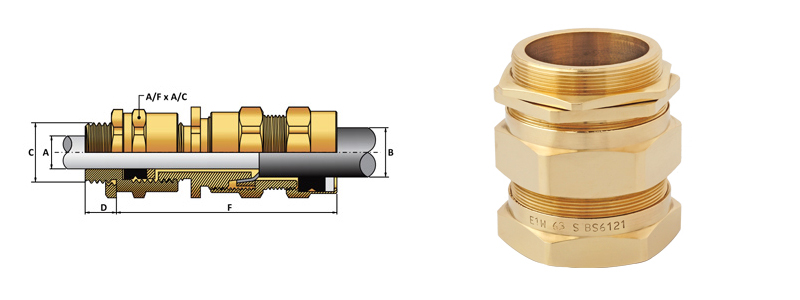

| Gland Selection Chart | |||||||||||||
| Size |
Standard Thread Size "C" |
Optional Thread | Thread Length "D" | Cable Dia. "A" | Cable Dia. B | Armour Wire Dia. | Protrusion Length "F" | A/F | A/C | ||||
| Metric | NPT | Metric | NPT | Min. | Max. | Min. | Max. | ||||||
| 20s16 | 20 | ½" | 25 | ¾" | 10 | 3.1 | 8.6 | 6.1 | 13.1 | 90 | 55.65 | 24 | 26.2 |
| 20S | 20 | ½" | 25 | ¾" | 10 | 6.1 | 11.7 | 9.5 | 15.9 | 0.9-1.25 | 55.4 | 24 | 26.2 |
| 20 | 20 | ½" | 25 | ¾" | 10 | 6.5 | 13.9 | 12.5 | 20.9 | 0.9-1.25 | 58.9 | 30 | 33 |
| 25 | 25 | ¾" | 32 | 1" | 10 | 11.3 | 19.9 | 19.9 | 26.2 | 1.25-1.6 | 70.6 | 36 | 39.2 |
| 32 | 32 | 1" | 40 | 1¼" | 10 | 17 | 26.2 | 23.7 | 33.9 | 1.6-2.0 | 72.5 | 46 | 50.6 |
| 40 | 40 | 1¼" | 50 | 1½" | 15 | 23.6 | 32.1 | 27.9 | 40.4 | 1.6-2.0 | 74.1 | 55 | 60 |
| 50S | 50 | 1½" | 63 | 2" | 15 | 31.5 | 38.2 | 35.2 | 46.7 | 2.0-2.5 | 71 | 60 | 65 |
| 50 | 50 | 2" | 63 | 2½" | 15 | 35.8 | 44 | 40.4 | 53 | 2.0-2.5 | 73 | 70 | 75 |
| 63s | 63 | 2" | 75 | 2½" | 15 | 41.7 | 50 | 45.6 | 59.4 | 2.0-2.5 | 73.2 | 75 | 80 |
| 63 | 63 | 2½" | 75 | 3" | 15 | 47.5 | 56 | 54.6 | 65.8 | 2.0-2.5 | 77.25 | 80 | 85 |
| 75S | 75 | 2½" | 90 | 3" | 15 | 55 | 62 | 59 | 72 | 2.0-2.5 | 83 | 90 | 95 |
| 75 | 75 | 3" | 90 | 3½" | 15 | 62 | 68 | 66.7 | 78.4 | 2.5-3.00 | 86 | 100 | 110 |
| 90 | 90 | 3½" | 100 | 4" | 18 | 67 | 79 | 76.2 | 90.3 | 3.0-3.50 | 114.5 | 112 | 121 |
| 100 | 100 | 4" | 20 | 77 | 91 | 86 | 102 | 3.15-4.0 | 140.6 | 123 | 133 | ||
| 110 | 110 | 20 | 86 | 100 | 101 | 110.5 | 3.15-4.0 | 145.5 | 134 | 144 | |||
| 115 | 115 | 20 | 86 | 102 | 101.5 | 110.5 | 3.15-4.0 | 145.5 | 134 | 144 | |||
