CW-4 Part Cable Gland

Size :
16mm to 90mm & ½" to 3½” Standard : BS 6121: Part-1:2005, EN 50262:1999, IEC62444:2010
Function :
Providing environmental seal on the cable outer sheath. Also provides mechanical cable retention & electrical continuity via armoured wire termination in indoor and outdoor area with all types of SWA cable.
Ingress Protection :
IP66

Material :
Brass CW614N, Stainless Steel 316L
Thread :
Metric, NPT
Operating Temp. :
-20°C to +80°C
Cable Type :
Single Wire Armour (SWA) Cable
Seal Material :
Neoprene
Features :
Armoured Ring and Outer Compression Seal
Accessories :
PVC Shroud, Earth Tag, Serrated Washer and Entry Thread Seal

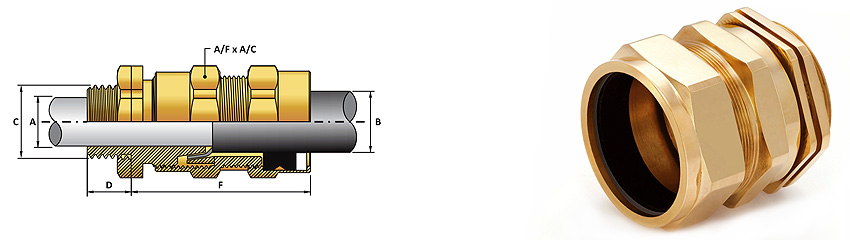

Gland Selection Chart
Size Standard Thread Size "C" Thread Length "D" Cable Dia. Max. "A" Cable Diameter Armour Wire Dia. Protrusion Length "F" A/F A/C
Metric NPT Min. Max.
20S16 20 ½" 10 12.5 6.6 13.5 0.9 35 22 24.25
20S 20 ½" 10 12.5 10.2 16 0.9-1.25 35 22 24.25
20 20 ½" 10 15 13.8 20.8 0.9-1.25 34.25 26 28.75
25S 25 ¾" 10 18.5 16.5 24 1.20-1.60 37.5 30 33
25 25 ¾" 10 20.5 21.9 27 1.20-1.60 38.5 34 38
32S 32 1" 10 27.25 25.8 34.25 1.60-2.00 39.5 40.5 45
32 32 1" 10 27.25 25.8 34.25 1.60-2.00 39.5 40.5 45
40S 40 1¼" 14 31 30.5 38.5 1.60-2.00 43.75 44.5 50
40 40 1¼" 14 34.5 32.5 41 1.60-2.00 45.5 47.5 51
50S 50 1½" 14 41 37.7 47 2.00-2.50 49 56.5 61.5
50 50 2" 14 44.5 43 53.5 2.00-2.50 49 61 65
63S 63 2" 15 51.5 48.5 59 2.5 54.75 68 73
63 63 2½" 15 56.75 54.5 65 2.5 53.5 75 80
75S 75 2½" 15 64 62.75 72 2.5 58.25 83.5 89
75 75 3" 15 69 68.19 79 2.50-3.15 59.75 90 95
90S 90 3½" 16 80 75 86 2.50-3.15 71.75 100 110
90 90 3½" 16 80 75 86 2.50-3.15 71.75 100 110
