Size :
16mm to 115mm & ½" to 4”
Standard :
BS 6121 : Part-1:2005, EN 50262:1999, IEC62444:2010
Function :
Providing seal on outer sheaths of all types of unarmoured cable in indoor and outdoor area.
Ingress Protection :
IP66
Material :
Brass CW614N, Stainless Steel 316L
Thread :
Metric, NPT
Operating Temp. :
-60°C to +125°C
Cable Type :
Unarmoured Cable
Features :
Outer Displacement Seal
Seal Material :
LSOH Silicone Seal & LSOH Nylon Washer
Accessories :
PVC Shroud, Earth Tag, Thread Seal, Serrated Washer

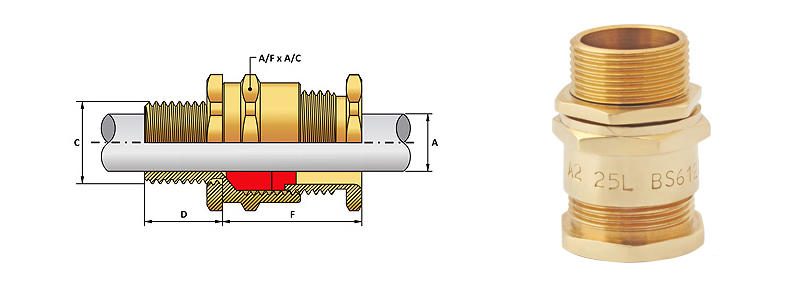

| Gland Selection Chart | ||||||||||
| Size |
Standard Thread Size "C" |
Optional Thread | Thread Length "D" | Cable Dia. A | Protrusion Length "F" | A/F | A/C | |||
| Metric | NPT | Metric | NPT | Min. | Max. | |||||
| 20s16 | 20 | ½" | 25 | ¾" | 10 | 3.1 | 8.6 | 25.75 | 24 | 26.2 |
| 20S | 20 | ½" | 25 | ¾" | 10 | 6.1 | 11.7 | 25.75 | 24 | 26.2 |
| 20 | 20 | ½" | 25 | ¾" | 10 | 6.5 | 13.9 | 26.25 | 27 | 29.5 |
| 25 | 25 | ¾" | 32 | 1" | 10 | 11.3 | 19.9 | 34 | 36 | 39.2 |
| 32 | 32 | 1" | 40 | 1¼" | 10 | 17 | 26.2 | 35 | 41 | 45 |
| 40 | 40 | 1¼" | 50 | 1½" | 15 | 23.6 | 32.1 | 35 | 49 | 53 |
| 50s | 50 | 1½" | 63 | 1½" | 15 | 31.5 | 38.2 | 33 | 54.5 | 60 |
| 50 | 50 | 2" | 63 | 2½" | 15 | 35.8 | 44 | 37 | 60 | 65 |
| 63S | 63 | 2½" | 75 | 2½" | 15 | 41.7 | 50 | 34.25 | 67.5 | 75 |
| 63 | 63 | 2½" | 75 | 3" | 15 | 47.7 | 56 | 37.25 | 75 | 80 |
| 75S | 75 | 3" | 90 | 3" | 15 | 55 | 62 | 40.75 | 80 | 85 |
| 75 | 75 | 3" | 90 | 3½" | 15 | 62 | 68 | 44 | 84 | 90 |
| 90 | 90 | 3½" | 100 | 4" | 18 | 67 | 79 | 51.5 | 106 | 114 |
| 100 | 100 | 4" | 20 | 77 | 91 | 56 | 122 | 130 | ||
| 110 | 110 | 20 | 86 | 100 | 54.5 | 138 | 146 | |||
| 115 | 115 | 20 | 86 | 102 | 54.5 | 138 | 146 | |||
